Our Offerings

Capability

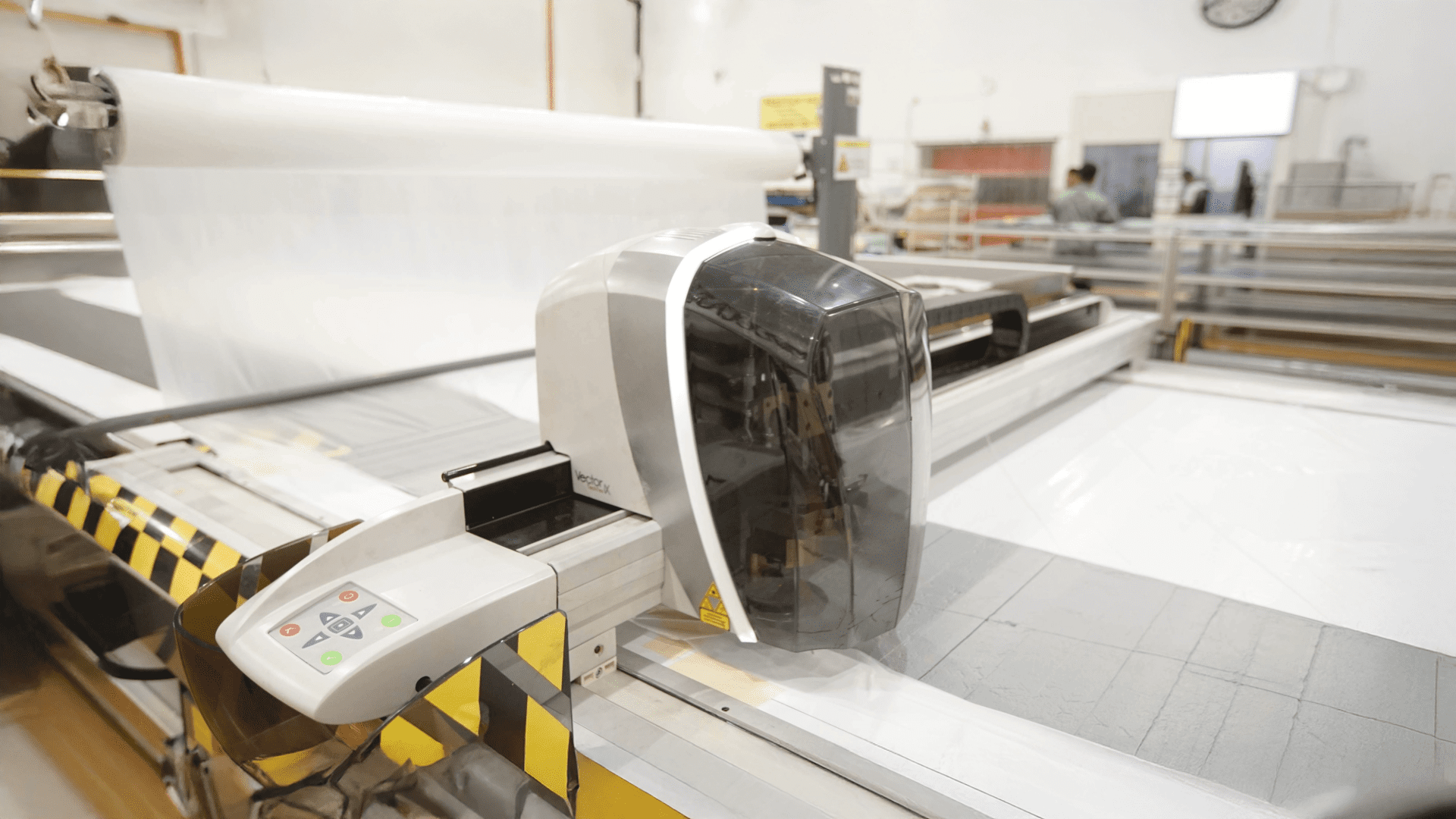

• 7 high-precision Ply Cutter machines with the longest of 10 m x 2.5 m working range area
• Capable to cut through 7 layer advance composite material on a single cut
• Cutting tolerance of 0.5 mm precision with speed of 1,000 mm/sec
• Automatic, continuous-cutting conveyor table enhancing operation productivity

Capacity

• 14 clean rooms totalling of 10,580 sqm working area
• Work space per room varies from 160 to 2,100 sql to suit specific project and program
• Total average lay-up volume of more than 5,600 panels per month
• More than 350 skilled Laminators and Technicians

Capability and Technology

• Equipped with 181 high accuracy laser projectors
• Adhering to stringent Climate Control Area (CCA) Clean Room specifications
• A state-of-the-art Automated Fiber Placement for research purpose
• Newly installed Robotic Positioning Placement with payloads up to 1.7 tonnes and maximum reach of 4.68 m

Capacity

• 14 autoclaves in a single-site facility, the world’s largest, eliminating Single-Point Failure risk
• Working diameter ranging from 2.7 m to 5.4 m with the longest length of 15.2 m
• Operating at maximum load of 36 tonne under the 260 °C

Capacity

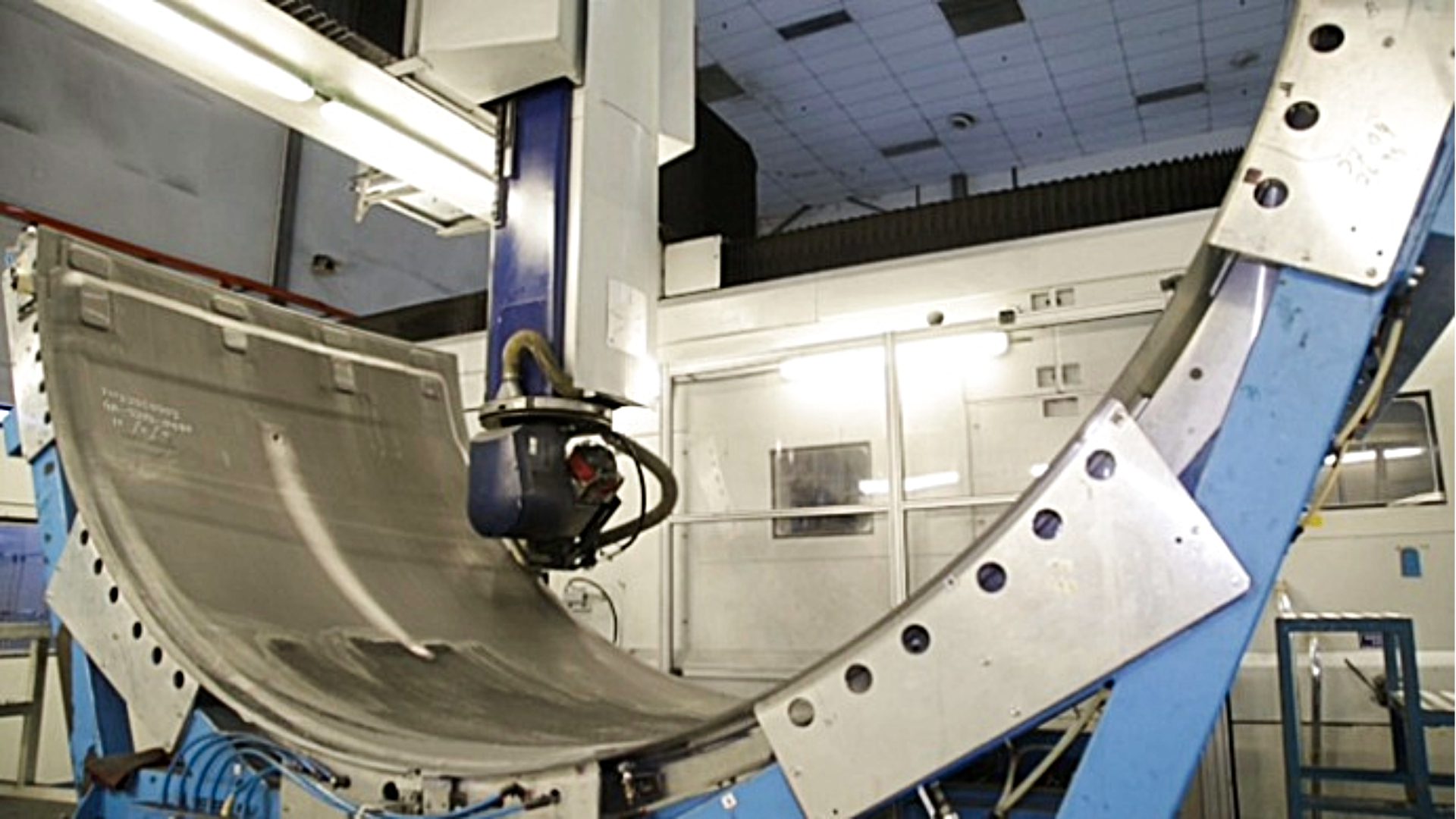

• Total of 9 CNC machines with 3 and 5-axis features with various dimension range; Length 3.3 m to 10 m, Width 2 m to 6.2 m, Height 1.2 m to 3.1 m
• Manned by over 40 CNC dedicated specialist

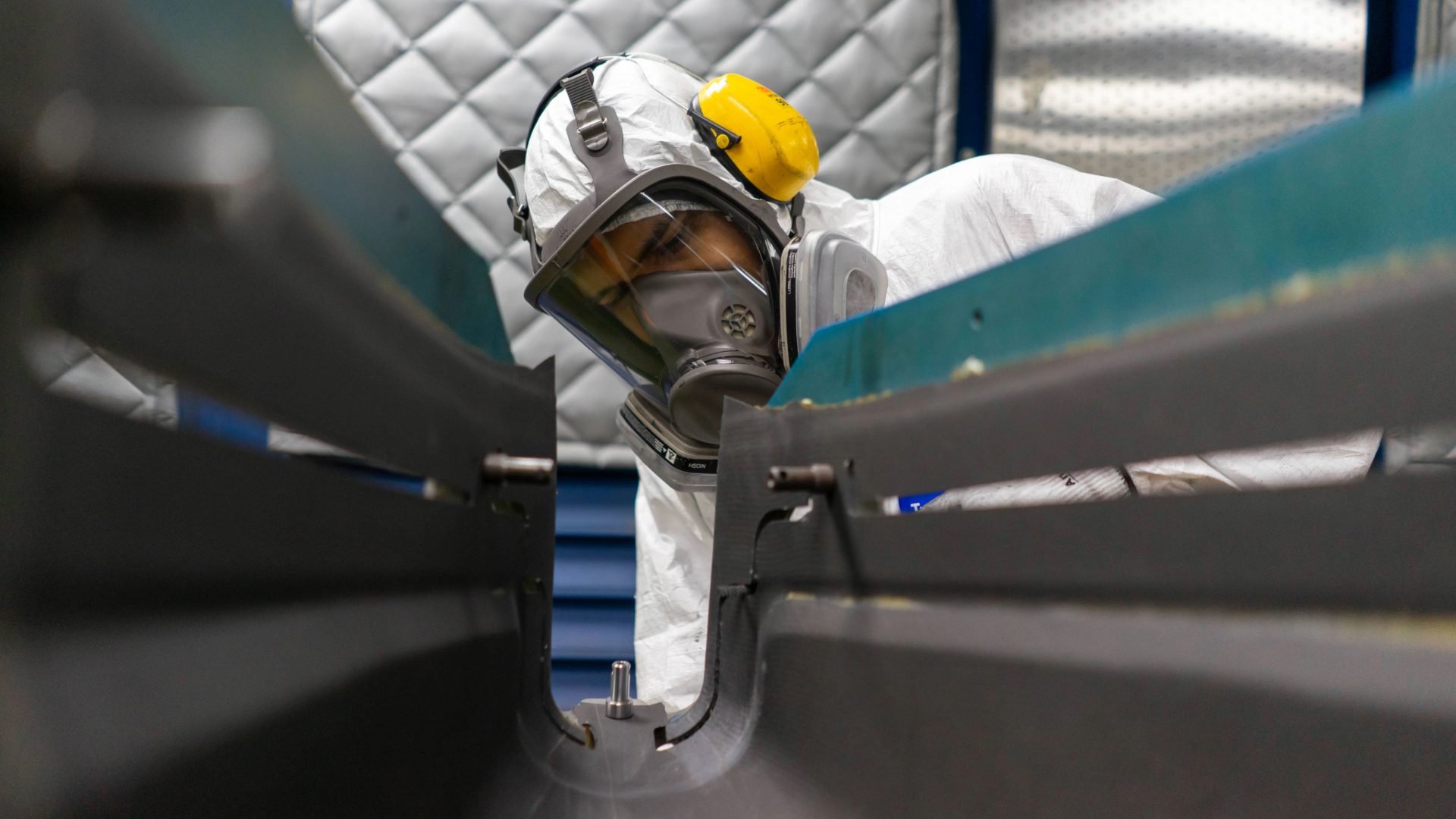

• Alternatively for cost-effective option, manual trimming are offered

Capacity

• House to 12 NDT machines with various concepts and models; Flat Bed, Multi-axis (Vertical Scanner), Twin Tower, Immersion Flat Bed, Rotary System and Manual Phase Array
• More than 70 Technicians and Specialist manning the machines
• 27 NDT Level-2 and Level-3 Specialist

Capability

• 3-channel horizontal scanning system
• 7-axis single complex curvature
• 7-axis turn table
• 4-axis rotary scanning system
• Robotic Arm Based Inspection Tools
• 11-axis complex scanning
• 6-axis immersion ultrasonic system

Capacity

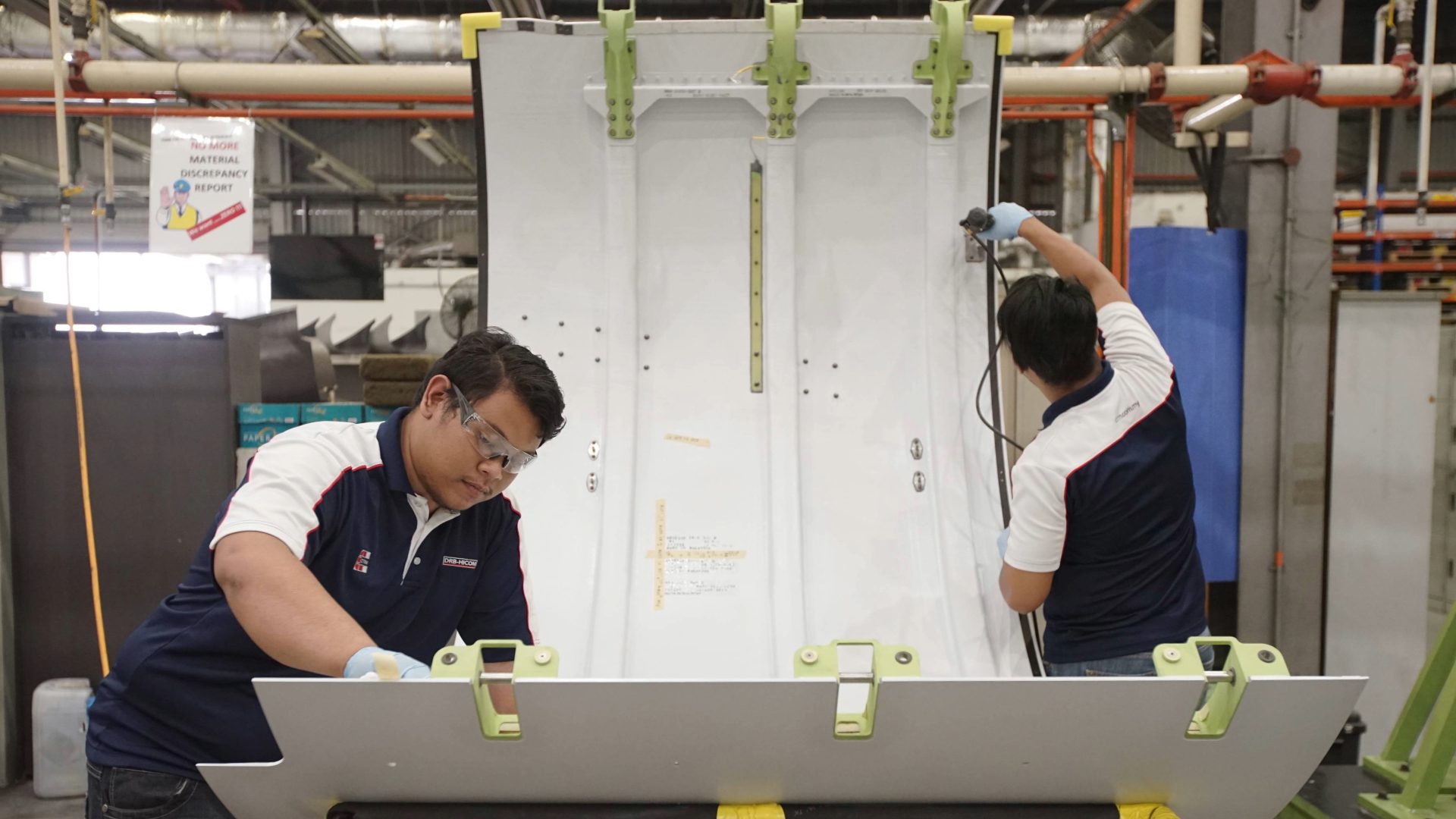

• Total assembly area of 4,515 sqm manning by more than 160 skilled Assemblers
• Various of semi-auto tools in-used (Drill, Router and Rivet Gun, Rivet Squeezer, Nutrunner etc)

Capability

Panel Assembly (Bonding), Countersink, Edge Sealing, Water Leak and Break Test, and Riveting

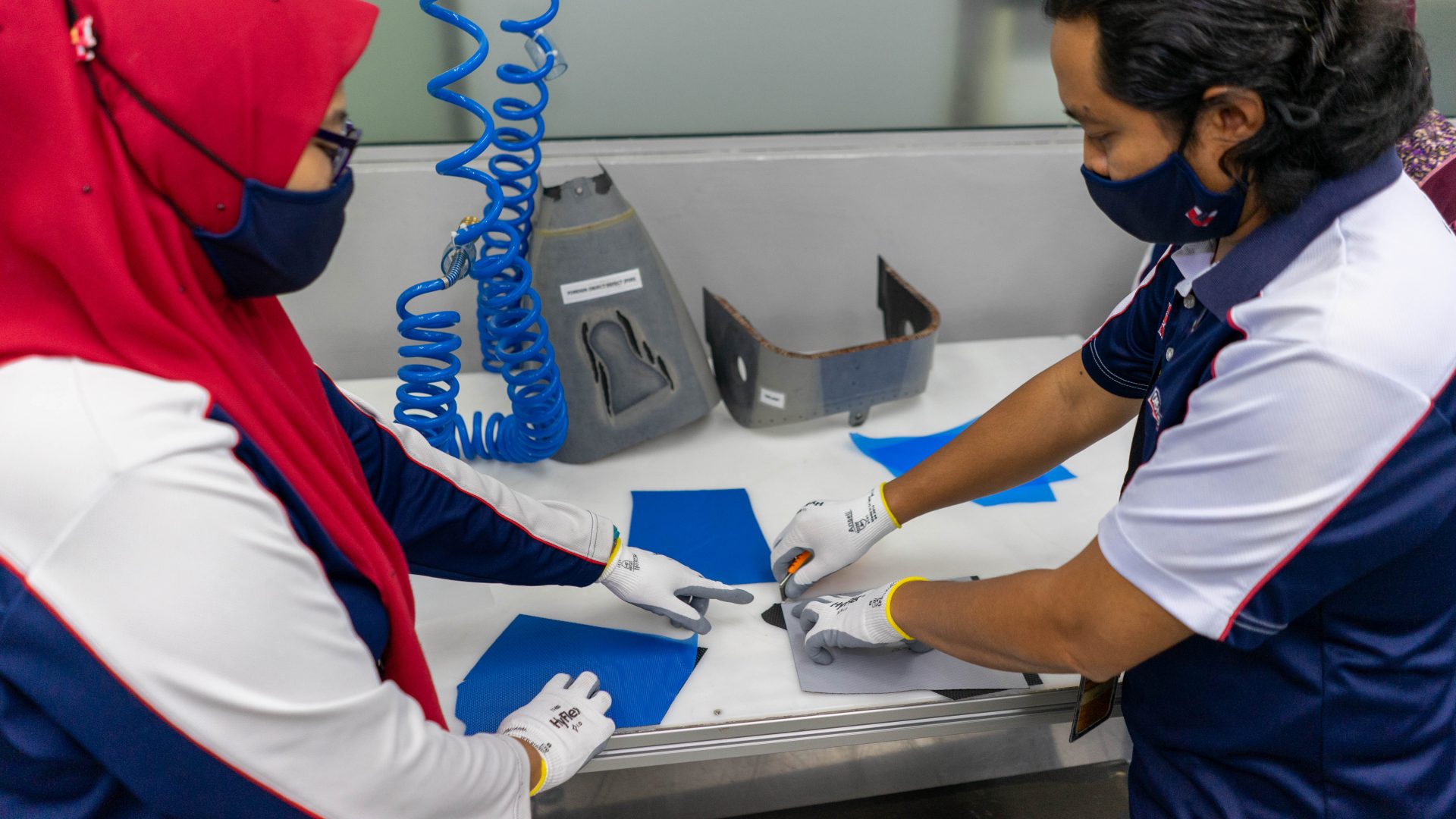

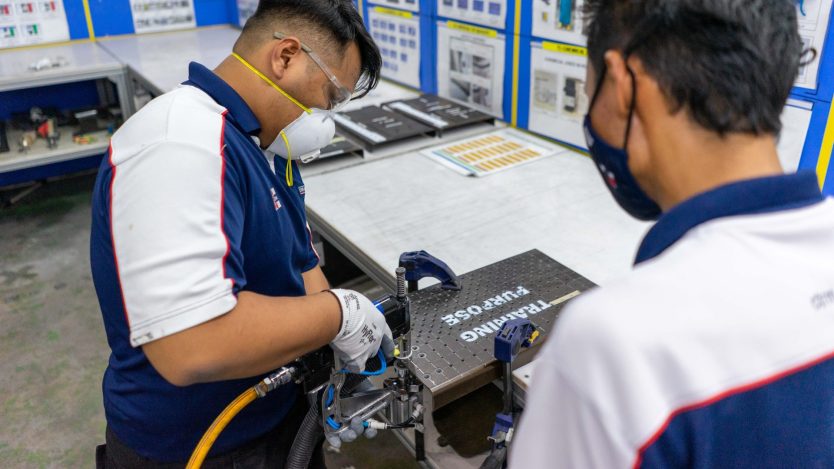

Practical Training Facility (PTF)

A specialised environment designed to provide practical, hands-on training equipped with the necessary modules, hand tools, accessories and resources to simulate real-production processes, allowing trainees to gain practical experience and develop the skills needed for efficient and safe production operations. Conducted and trained by home-grown Technical Expert

Capacity

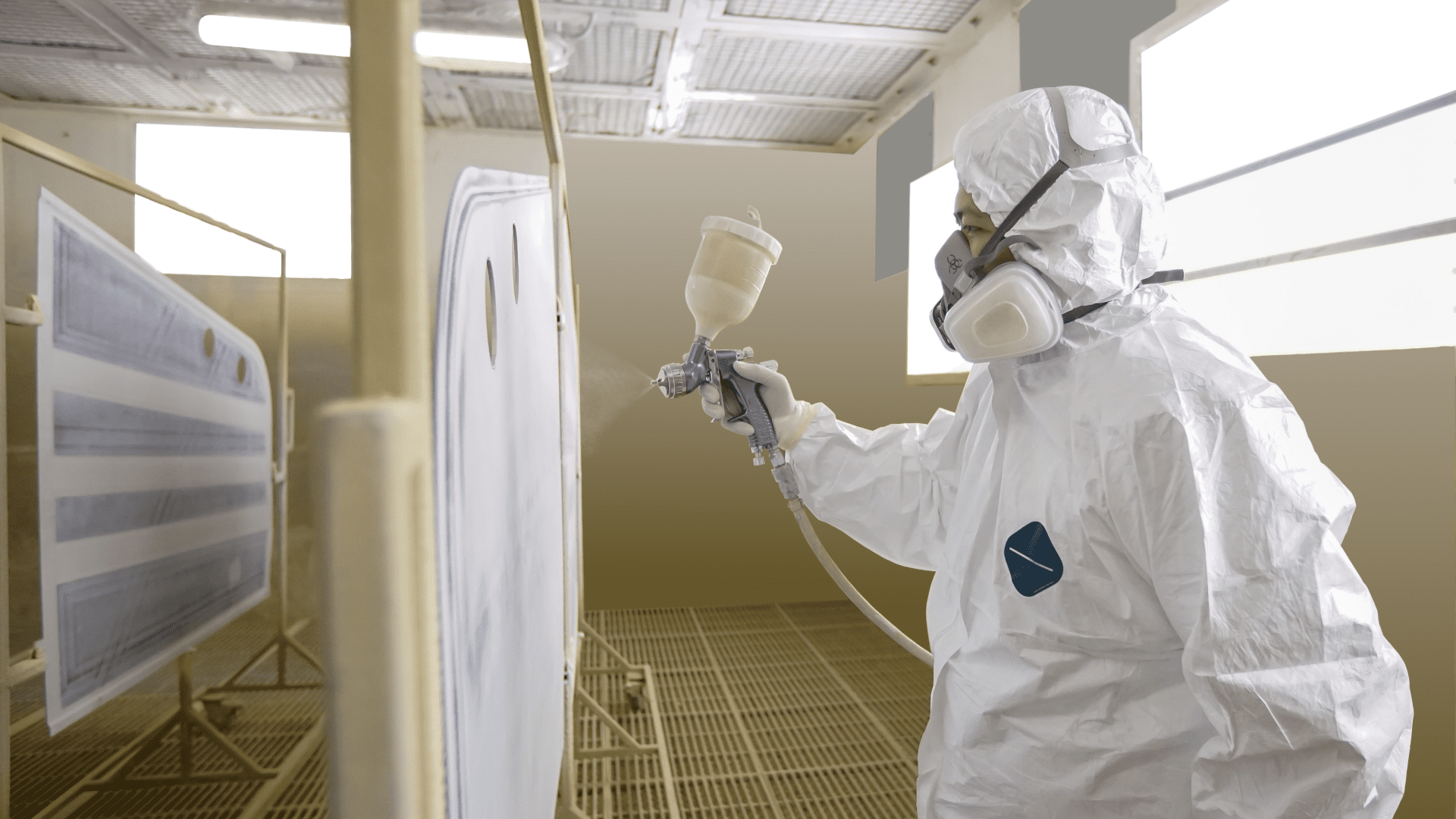

• 7 Spray Booths covering more than 300 sqm area to support the painting process of various aircraft production rate
• Dedicated 7 Ovens for paint drying
• Final Inspection total area of 931 sqm available in 4 buildings to support multiple programs

Capability

• Primer and Top Coat
• Qualified inspectors for Final Inspection

Capacity

• Total area of 1,629 sqm
• 6 dedicated ovens for core drying, one each for core forming, stabilising and special process respectively

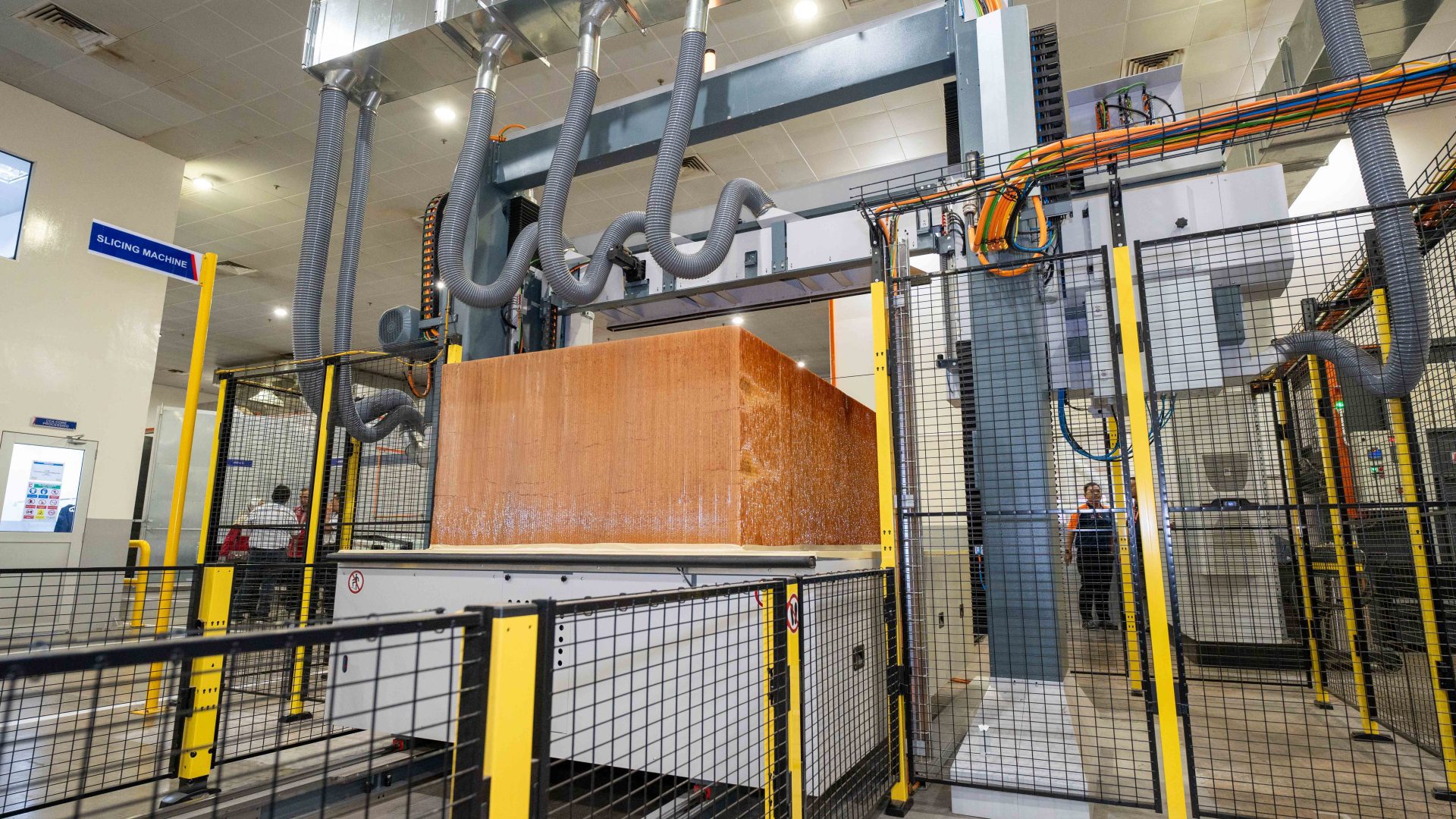

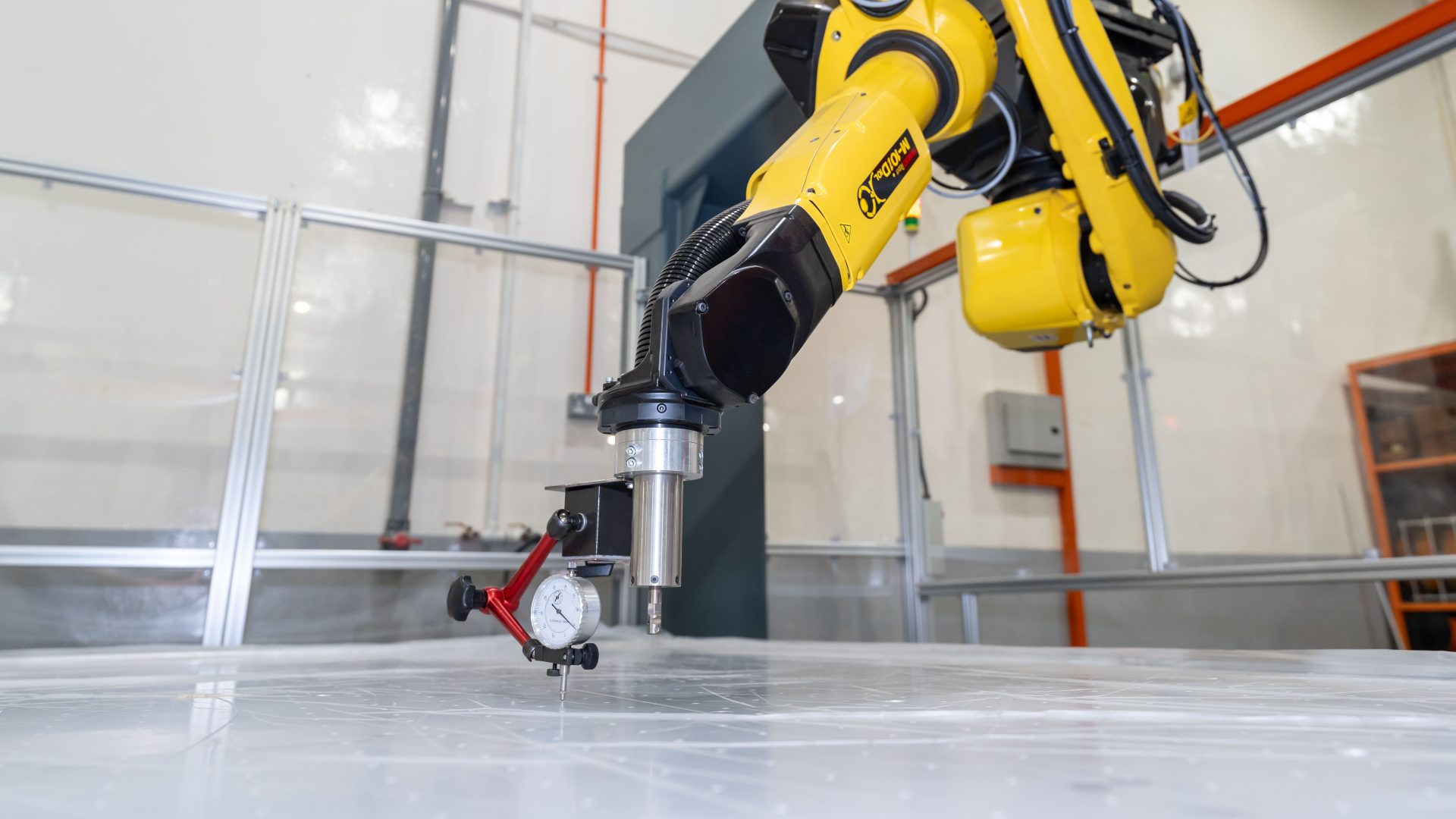

• Automation; Horizontal Slicing Machine, Robotic Ultrasonic Cutting machine, Forming Machine

Capability

• Nomex honeycomb core
• Processes : Forming, Potting, Bonding, Chamfering

Airbus (5)

Airbus Canada 1000069850 | Airbus Helicopter 2015-2362 Issue F-01 | Airbus Military Casa 1400 AM-SUB-0367 68 69-12 | Airbus SAS 10204 | EADS-Military Air System EADS-MAS AS EN 9100

Boeing (2)

Boieng D1-4426 | BAC 5317-1, -3 & -4

NADCAP (5)

AC 7108 for Chemical Processing | AC 7114 for Non-Destructive Testing | AC 7118 for Composites | AC 7122 for Non Metallic Materials Testing | AC 7130 for Measurement & Inspection

Aerospace, Environment and Safety Accreditation (4)

AS9100 | ISO 45001 2018 | ISO14001 2015 | ISO17025
